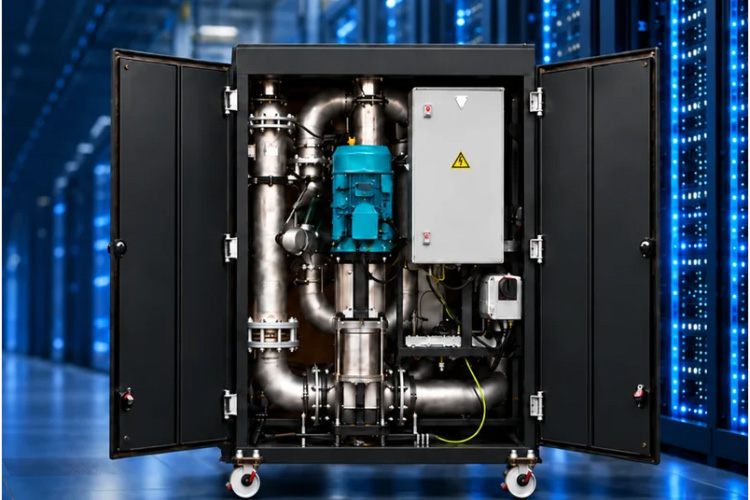

1 MW Cooling Distribution Unit
This cooling solution is designed for 1 MW of thermal management capacity. It is geared toward decreasing OPEX and CAPEX by maximizing efficiency and keeping redundancy at the data hall level.
System Specifications
- Cooling capacity: 1 MW
- Pump and motor configuration: 1 pump motor group, 20 HP
- Heat exchanger configuration: 1 brazed plate heat exchanger
- Drive and control technology: Danfoss IC2-Micro
- Flow rate and operating pressure: 400 GPM, 36 psi TCS available pressure
- Filtration configuration: 48-micron strainer
- Dimensions and weight: 60″ W x 44″ L x 92″ H; 1.5 tons wet
Contact HydraCOOL to discuss the 1 MW CDU and determine whether its design aligns with your cooling requirements.

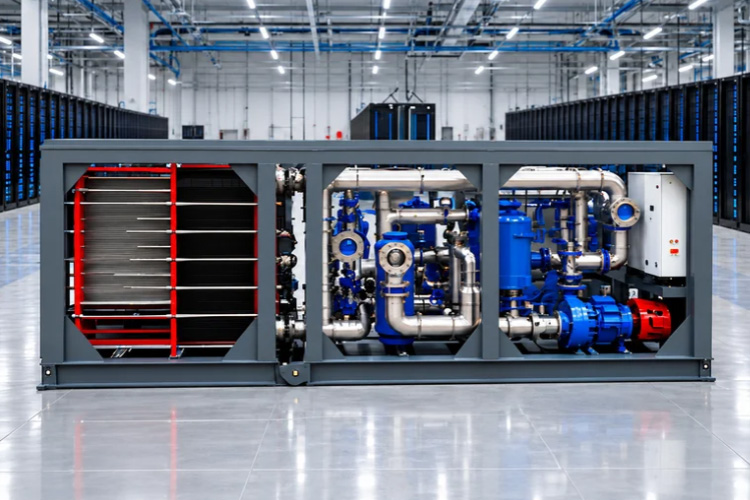

10 MW Cooling Distribution Unit
This cooling solution is ideal for modern data center applications requiring up to 10 MW of advanced thermal management capacity. The system combines pumping, heat exchange, filtration, and control components in order to fully support efficient heat transfer and repeatable coolant circulation for high-capacity computing environments.
System Specifications
- Cooling capacity: 10 MW
- Pump and motor configuration: Two pump-motor groups, each rated 125 HP
- Heat exchanger configuration: Three heat exchangers
- Drive and control technology: Danfoss Variable frequency drives and Editron motors
- Flow rate and operating pressure:
- Filtration configuration: Full-stream filtration and side-stream injection filtration
- Dimensions and weight: 120″ W x 361″ L x 126″ H; 25 tons
Contact HydraCOOL to discuss the 10 MW CDU and learn if this configuration is compatible with your data center’s cooling requirements.
